09/04/01 Air Conditioning works after lots of effort!
Unfortunately none of the A/C compressor end hoses that I
obtained from a local wrecking yard would properly fit-up to the LT1 R134A revised
compressor rear fittings due to a slight offset on the high pressure side of the fitting

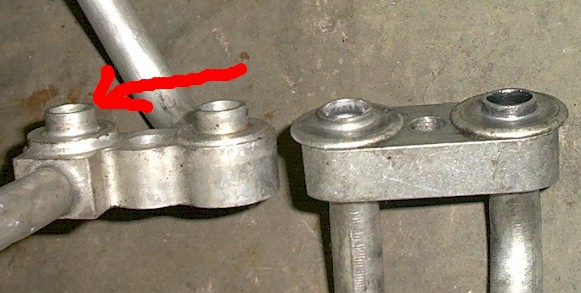

connection. This view compares the LS1/LT1 type rear compressor fitting (red arrow
points to offset) on the left versus the stock G-body fitting on the right. This
meant plan "B", have a hose set fabricated to fit using the proper LT1
compressor end with new mating hose ends to match up with my existing connections at the
accumulator and condenser.
- I forgot to snap a pic of the stock LT1 compressor lines, however, once I determined the
correct hose lengths based on where they would be routed this view
shows the new hoses with the correct ends installed.
- I also had to slightly "massage" the low pressure aluminum line (the large
hose) where it bends upward at the front of the compressor. Nominally, it points up
90 degrees at about the 12 o'clock position so I gently twisted it counterclockwise toward
the passenger fender to almost a 9 o'clock position. This was necessary to clear the
high pressure line attaching from the condenser.
- I needed to add a special port on the high pressure line to use the LS1 PCM
specific high pressure sensor. Location options were severely limited due to the
very short length of the F-body wire harness for this. I also had an R134a
evacuation fitting added to the high pressure side in the same location as the OEM R12

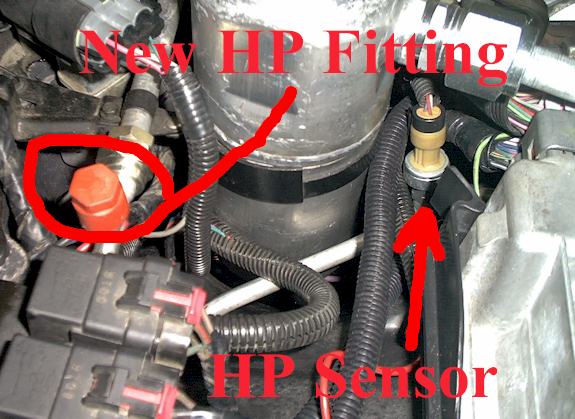

fitting. This view shows both fittings in their respective positions next to the
accumulator.
- This view
shows the installed hose routing at the front of the compressor as the low pressure line
routes over the PCM to the accumulator. I installed a new accumulator while I was at
it to ensure that the desiccant could still absorb any moisture trapped in the system
prior to charging.
- I also replaced the stock high pressure line orifice with a special unit designed for
colder air operation since my new lines were substantially shorter than the OEM set-up and
thus they wouldn't hold as much refrigerant.
- I only realized that after carefully studying the LS1 PCM wiring schematics for the
F-body A/C system that I was going to have to tap into the PCM wire harness and wire in:
- an A/C 12V request signal (light green wire) from my A/C-Heater control to pin 17 on red
harness connector
- a 12V relay ground which will activate the compressor clutch when the high pressure
sensor detects low system pressure to pin 43 on the red harness connector
- a compressor clutch status wire to pin 18 on the red harness connector which splices
into the 12V + lead going to the compressor clutch from the relay
I also had to provide a ground wire to the compressor clutch 2 pin wire harness
connector. This was a lot more work than I had originally figured! Oh well!
- I bought a 30 AMP Bosch relay and wired it with an ignition "on" hot lead to
two sides, connected the PCM pin 43 lead and then the other switched 12V+ side to the

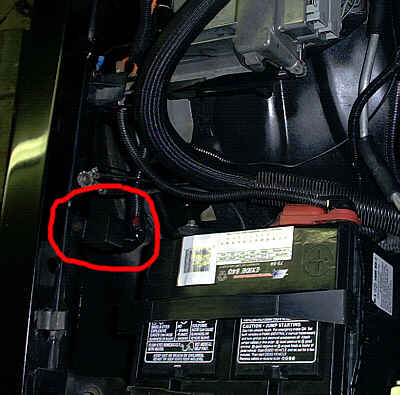

compressor clutch harness. I mounted the
relay next to the battery on the inner fender so that the OEM F-body two wire harness
could reach the compressor clutch.
- The final step was installing the new 100" long 6 rib serpentine belt.
- I took the car to a local automotive shop to have the A/C system properly charged since
I couldn't locate a vacuum pump to properly evacuate the moisture from the system myself.
The air now blows icy cold!!!
09/10/01 Tach & speedo now read correctly!
I took my car to Tacoma Speedometer and had Mark (one of
the owners) work a little magic with my slow reading tachometer and non-functional speedo.
- An Electronic Ratio Adapter by Abbott Enterprises, Inc. was installed
with a simple 12V+ ignition hot lead, ground and splicing in the tach lead from the LS1
PCM into the Adapter and then routing the signal out to my tach. By using the 16 dip
switches on the unit Mark found the right calibration to make my tach finally read
correctly! Another LS1 PCM Achilles heel for retrofit resolved!
- The speedo required another specialty item manufactured by
Abbott, this time a unit capable of converting an electronic Vehicle Speed Sensor (VSS)
signal generated through the PCM and driving the Monte Carlo mechanical speedo cable.
This unit is called the Cable X. Once installed with a 12V+ ignition hot lead, ground,
and PCM VSS wire, it was just a matter of making a custom cable length to connect onto my
existing speedo cable end and setting the dip switches. My speedo is now calibrated
to read within less than a 0.006% error at 60 MPH! Pretty cool and so much for
having to machine the T56 tailhousing!
